ગ્રાફિક ફોર્મેટ સપોર્ટેડ: એઆઈ, પીએલટી, ડીએક્સએફ, બીએમપી, ડીએસટી, ડીડબલ્યુજી, એલએએસ, ડીએક્સપી
એપ્લિકેશન: લેસર કટીંગ
સીએનસી કે નહીં: હા
કૂલિંગ મોડ: વૉટર કૂલિંગ
નિયંત્રણ સૉફ્ટવેર: ડીએસપી
Place of OriginCHINA
પ્રમાણપત્ર: સીઈ, આઇએસઓ

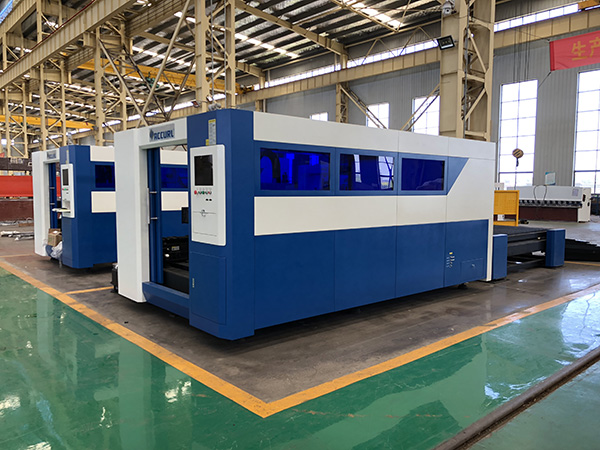

ઉત્પાદનનું નામ: ફાઇબર લેસર મેટલ કટીંગ મશીન
Type:1530 Fiber Laser Cutting
Mainly used for cutting carbon steel, stainless steel, aluminum alloy, titanium alloy, copper, silicon steel, galvanized plate, galvanized plate, galvanized plate, pickling plate, and other metal materials cutting.
1) the machine adopts dynamic gantry structure, imported high precision gear rack and linear guide rail, smooth transmission, high precision.
2) adopt high-quality steel welded frame structure, after professional welding, high temperature annealing, secondary aging treatment, precision processing of large gantry milling machine, these design and processing means to ensure that the machine tool has excellent seismic resistance, high rigidity and stability.Maintain high strength, high precision, can maintain long-term use without deformation.
3) the machine tool system is equipped with imported ac servo system and driving system. The machine tool transmission adopts imported rack and pinion transmission structure and linear guide rail to ensure the high speed, high precision and high reliability of the equipment.Rack and pinion and linear guide rail adopt closed dustproof device to prevent oil-free friction movement and dust pollution, improve the service life of transmission parts and ensure the accuracy of machine tool movement.The machine is equipped with automatic lubrication device, regularly add lubricating oil to the rack and pinion of bed, beam, and improve the service life of rack and pinion;X and Y adopt imported servo motor with large torque and high subdivision, and Z axis adopt imported servo motor with high precision, high speed, large torque, large inertia, stable and durable performance.Ensure the high speed and acceleration of the whole machine.X/Y/Z axis linear guide rail, gear rack and screw are equipped with grease nozzle, which can be regularly filled with grease.The z-axis heightening device realizes up and down movement of the cutting head.Both upper and lower ends of the proximity switch control stroke, ball screw drive, to ensure the accuracy of movement.The z-axis can be used as an axis to perform its own interpolation motion, and at the same time, it can also interact with the X and Y axes, and can be switched to follow-up control to meet the needs of different situations.After the capacitance sensor in the z-axis device detects the distance between the cutting nozzle and the plate surface, the signal is fed back to the control system, which controls the z-axis motor driving the cutting head and down movement, so as to ensure the distance between the cutting nozzle and the plate remains unchanged and effectively ensure the cutting quality.Cutting head nut with adjustable focus, according to the cutting material material and thickness to adjust the focus position, in order to obtain a good cutting section.
4) adopt the special numerical control system of wuhan osendike laser cutting machine based on Windows operating system, integrate the special function module of laser cutting control, powerful function, good man-machine interface, simple operation.
