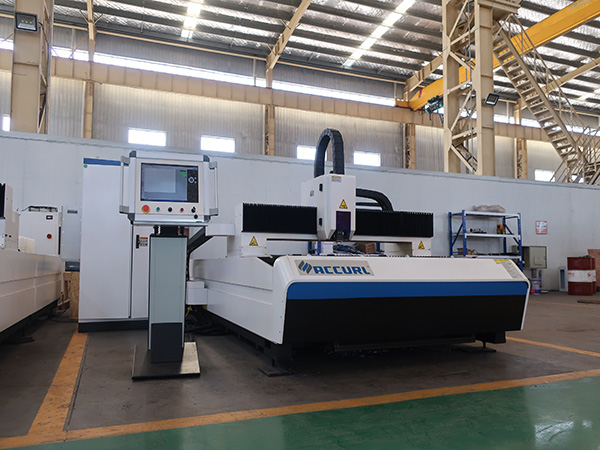

cnc 1000w ફાઇબર લેસર કટીંગ મશીન ભાવ

સીએનસી 1000W ફાઈબર લેસર કટીંગ મશીન ભાવ

વિશિષ્ટતાઓ


કટીંગ ક્ષેત્ર: 1500 * 3000mm
Cutting Speed:1-8000mm/min
ગ્રાફિક ફોર્મેટ સપોર્ટેડ: એઆઈ, બીએમપી, ડીએસટી, ડીડબલ્યુજી, ડીએક્સએફ, ડીએક્સપી, એલએએસ, પીએલટી
Application:Laser Cutting, Metal sheet cutting
શરત: નવું
જાડાઈ કટીંગ: 0-30 મીમી
CNC or Not:Yes, CNC
કૂલિંગ મોડ: વૉટર કૂલિંગ
Control Software:YASKAWA/EMPOWER
મૂળ સ્થાન: અનહુઇ, ચીન (મેઇનલેન્ડ)
પ્રમાણપત્ર: સીઈ, આઇએસઓ, એસજીએસ
વોરંટી: 2 વર્ષ
Product name:CNC Sheet Metal Laser Cutting Machine Price/Fiber Laser Cutting
કટીંગ સામગ્રી: મેટલ સ્ટેઈનલેસ સ્ટીલ કાર્બન સ્ટીલ એલ્યુમિનિયમ
Servo motor:YASKAWA
Laser head:Lasermech

ઉત્પાદન વર્ણન


ફાઇબર લેસર કટીંગ મશીન

Fiber laser cutting works by focusing the power of a high-power laser onto the surface of the material to be cut.

The energy in the laser beam is absorbed into the surface of material, and the energy of the laser is converted into heat, which melts or vaporizes the material.

Additionally, gas is focused or blown into the cutting region to expel or blow away the molten metal and vapor from the cutting path.
Choosing a Fiber laser cutting system will provide a number of advantages over traditional CO2 lasers, because of their high quality beam, Fiber lasers will allow you to cut, engrave and mark a wide range of metallic materials.

Our range of Fiber machines can be specified in a variety of power outputs ranging from 500W and up - which will provide you with a machine capability of cutting sheet metals such as 12 mm thick stainless steel depending on the machine power.

Technical Parameter




NO
NAME
Value
એકમ
1
Max. working area (length×width)
3000×1500
મીમી
2
X axis cutting length
1550
મીમી
3
Y axis cutting width
3050
મીમી
4
Z axis Lifting Distance
120
મીમી
5
એક્સ / વાય અક્ષ પોઝિશનિંગ સચોટતા
0.05
મીમી / મી
6
X,Y-axis repeated positioning accuracy
± 0.02
મીમી
7
મહત્તમ ઝડપ
90
m/min
8
Working Max. Acceleration Speed
0.5જી
9
Total power protection grade
આઇપી 54

મુખ્ય લક્ષણો


1. With dual-drive Gantry mechanisms, imported rack, pinion and linear guide for high speed steady transmission and high precision
2. Overall steel welding machine, rough machining after annealing.
3. Cooperated with vibration aging treatment to eliminate the stress of the welding and machining, maintained long term using without deformation.
4. Greatly improving the response speed and bed stability during working.
5. Japan imported servo motor for the X, Y, Z axis, high precision, high speed, high torque, large inertia, performance is stable and durable.
6. The servo motor combination ensure the machine's high speed and acceleration.
7. Based on the Windows operating system of fiber laser cutting machine CNC system, integrates a number of laser cutting control specific modules for better function.
8. Best human-computer interface, easy to operate.
9. With U. S. Lasermech produced special cutting head, and capacitive sensing, high precision induction and responsive for the most stable and reliable performance.

Typical Fiber Laser Cutting Applications


Precision engineering.
High precision sheet metal profiling.
Cutting metallic and non-metallic products.
Marking components for tractability, serial no. plates, ID plaques, VIN Numbers.

Industry Sectors Applied to


Medical
Automotive
Aerospace
Aviation
Marine Engineering
General Manufacturing
